Half Shaft Plungers

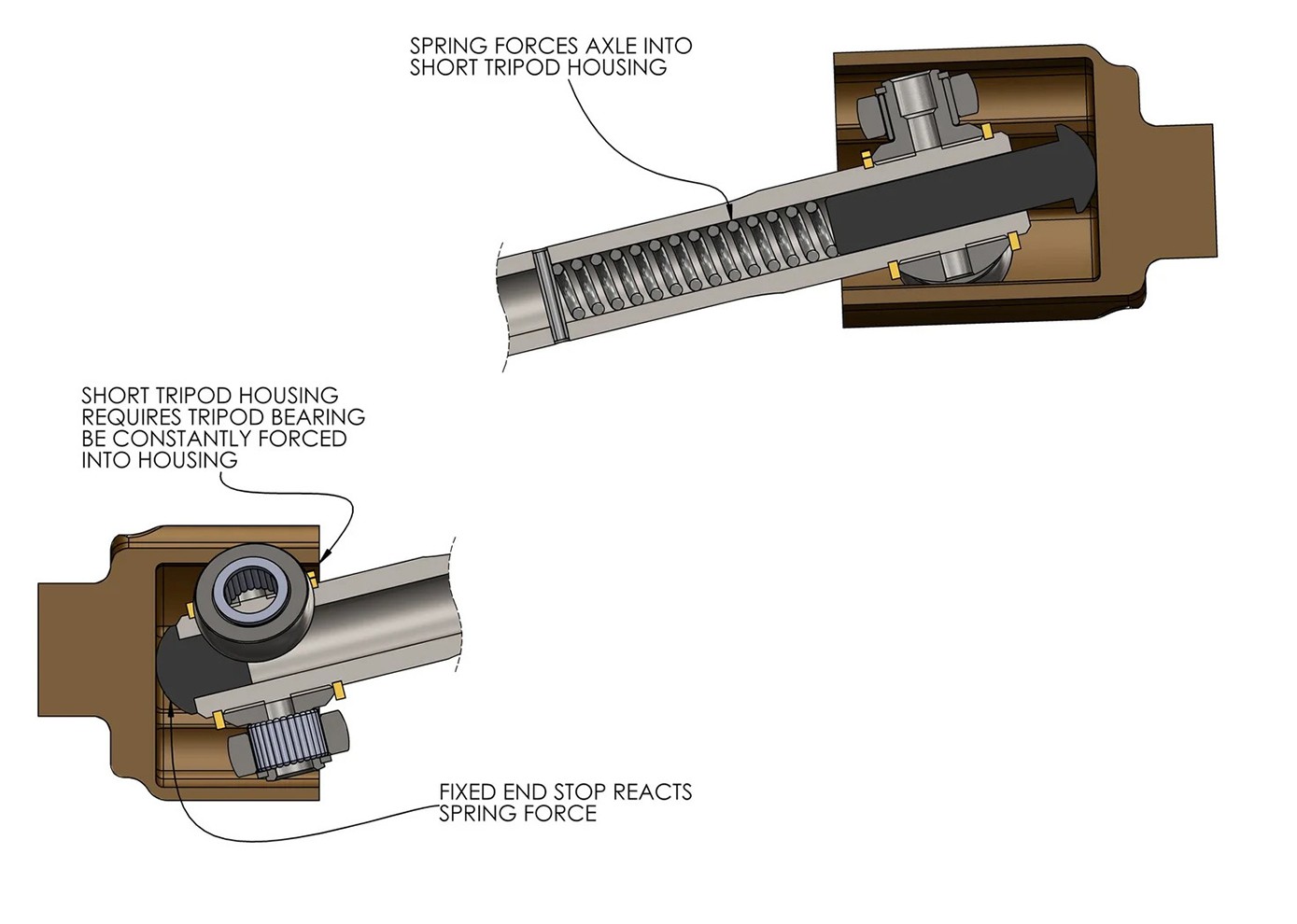

A plunging system inside the axles/half shafts of the vehicle ensure that the tripod bearings maintain full contact
By installing a plunger with a spring, the continuous contact can help lead to reducing unsprung mass on the stub shaft end

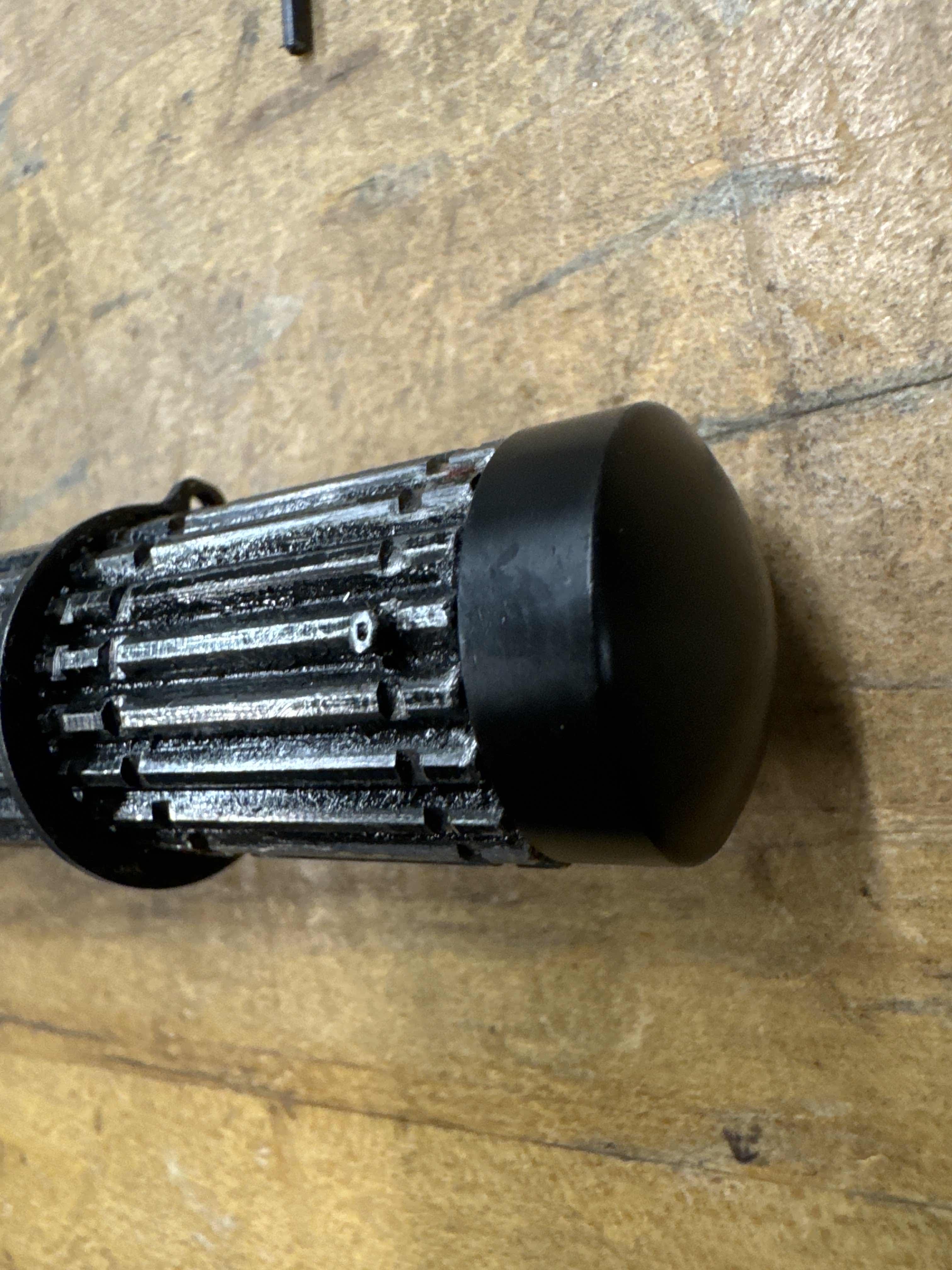

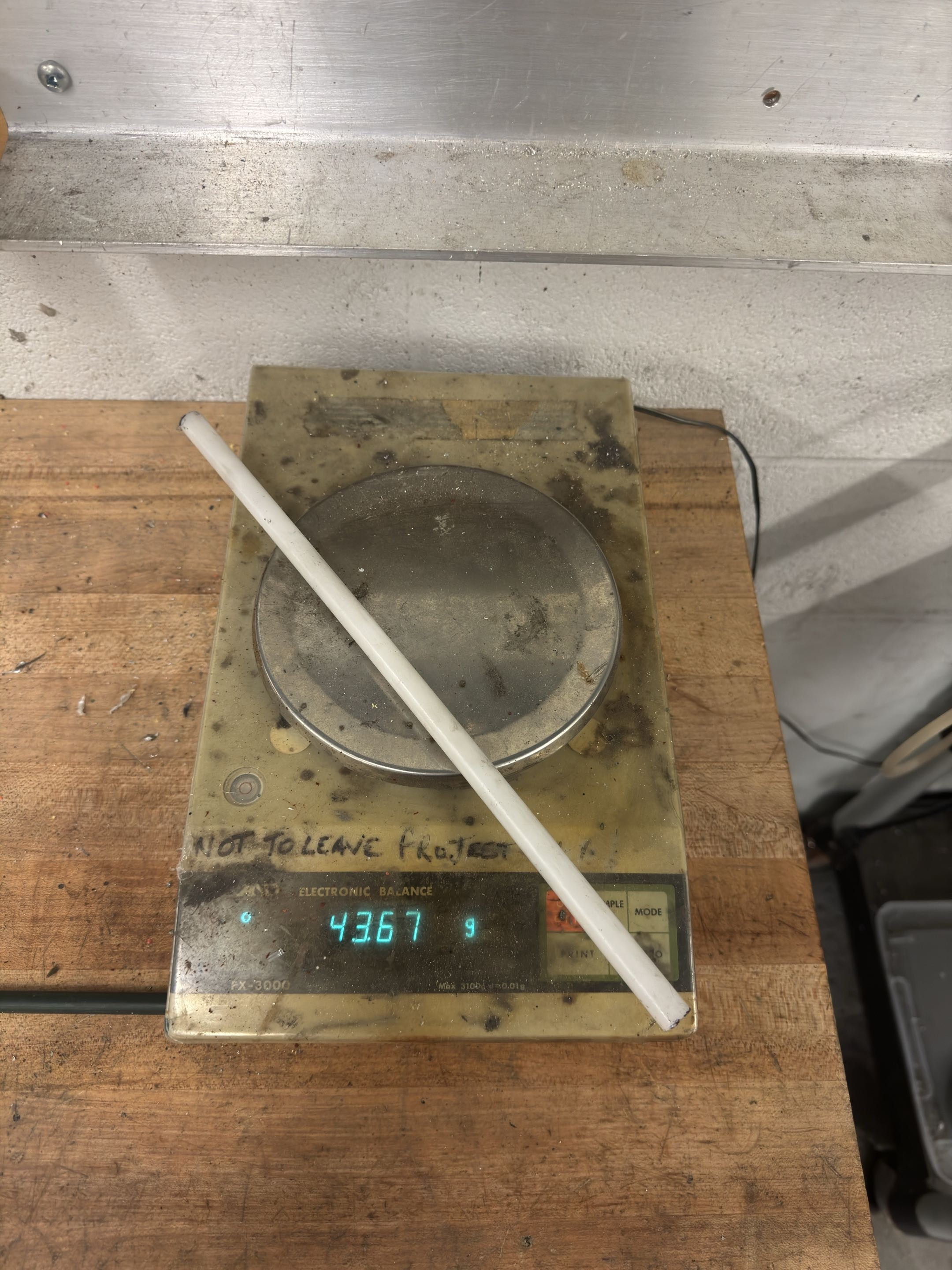

Machined plastic filled rod inside the half shafts, roll pin holes to keep the end stop in place, and assembled the spring with the plunger

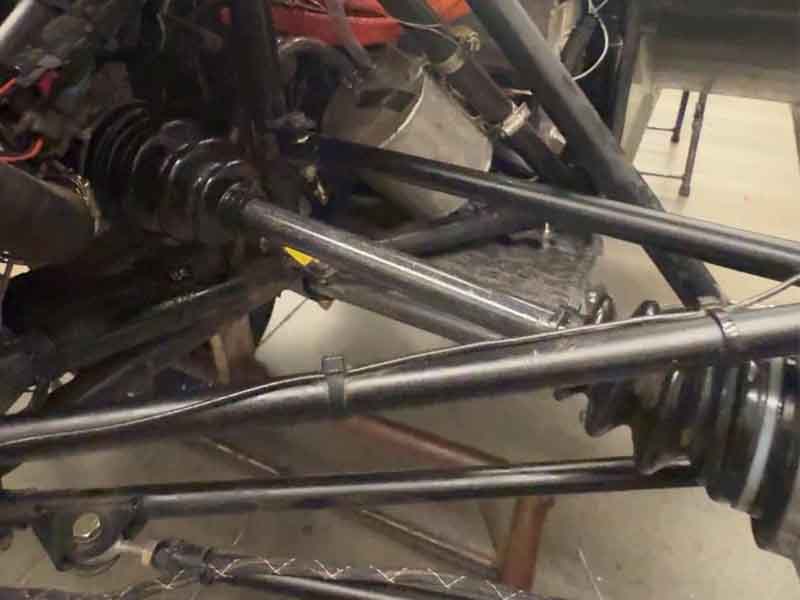

Installed in the vehicle through taking off suspension control arms, rubber boots, and half shaft covers
Removed and reinstalled safety wire to ensure complete rules compliance

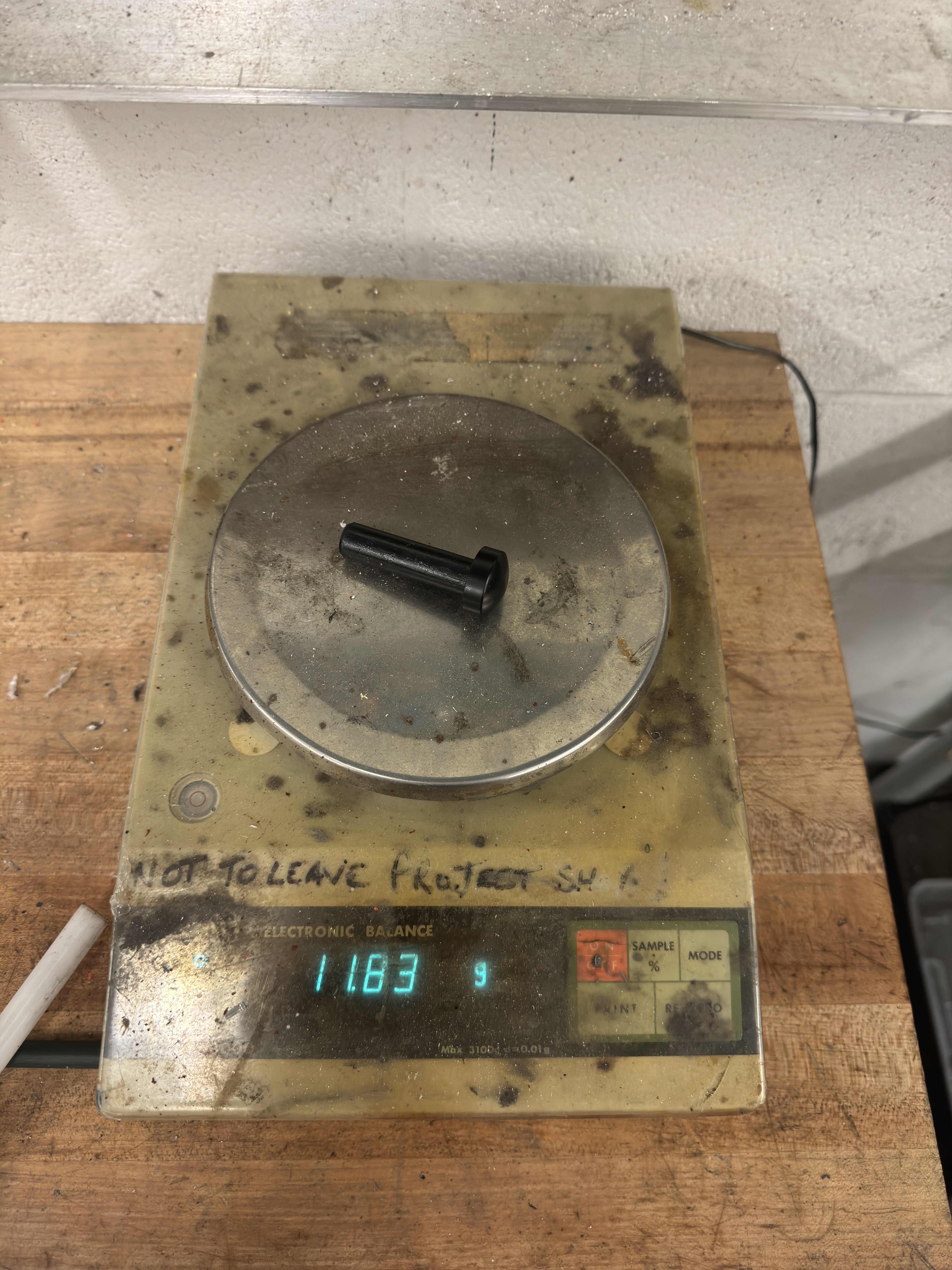

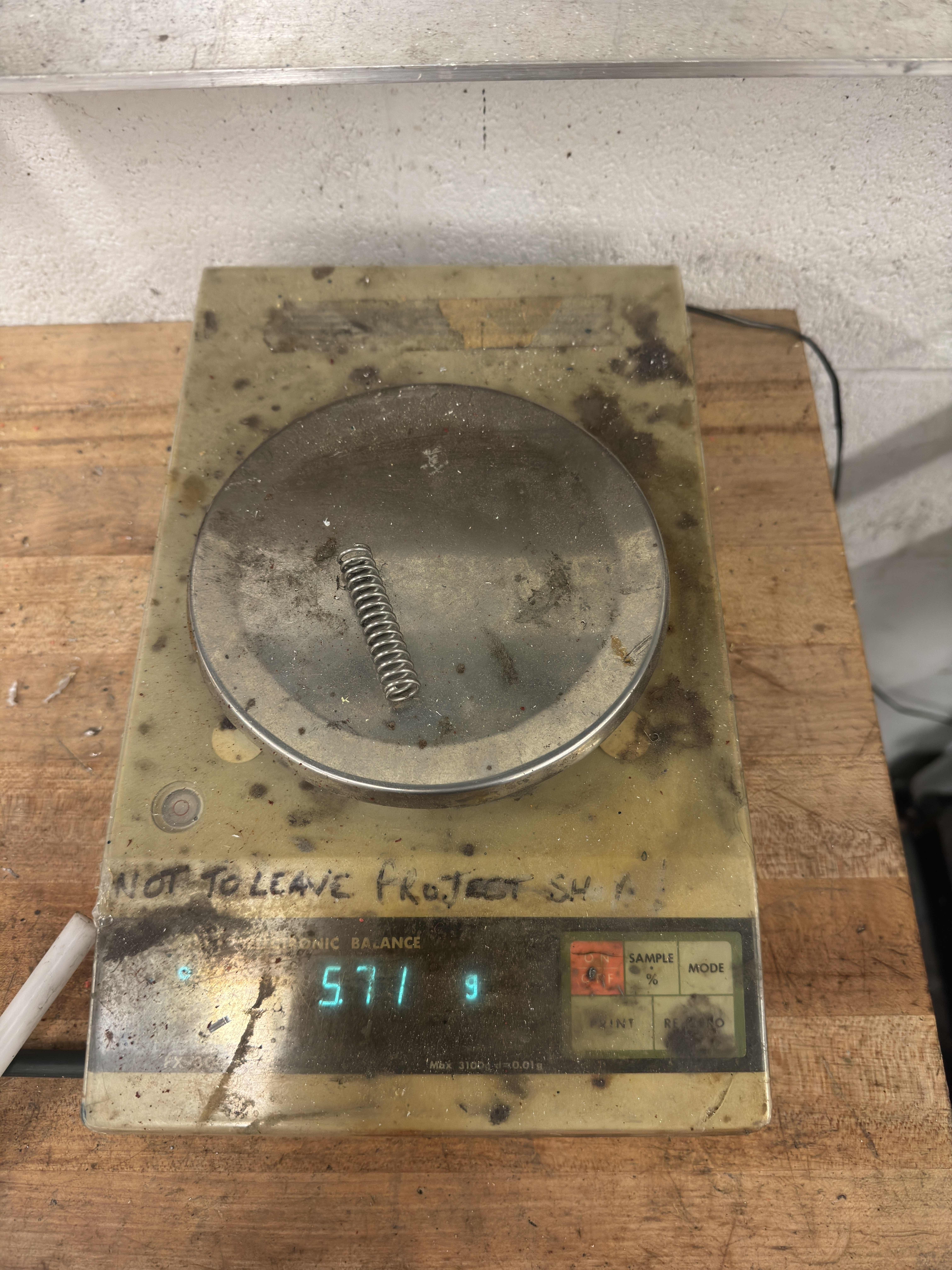

R&D task demonstrated a possible net weight reduction if the stub shafts were manufactured to be shorter
A problem in the extra length of the half shafts meant the plunging system was not completely functional
Identified future improvements, such as stiffening spring and further reducing half shaft length
