Chassis Front Enclosure Mount
Created a laser cut jig in order to accurately position the front enclosure mount within 2 millimeters laterally and longitudinally
What?

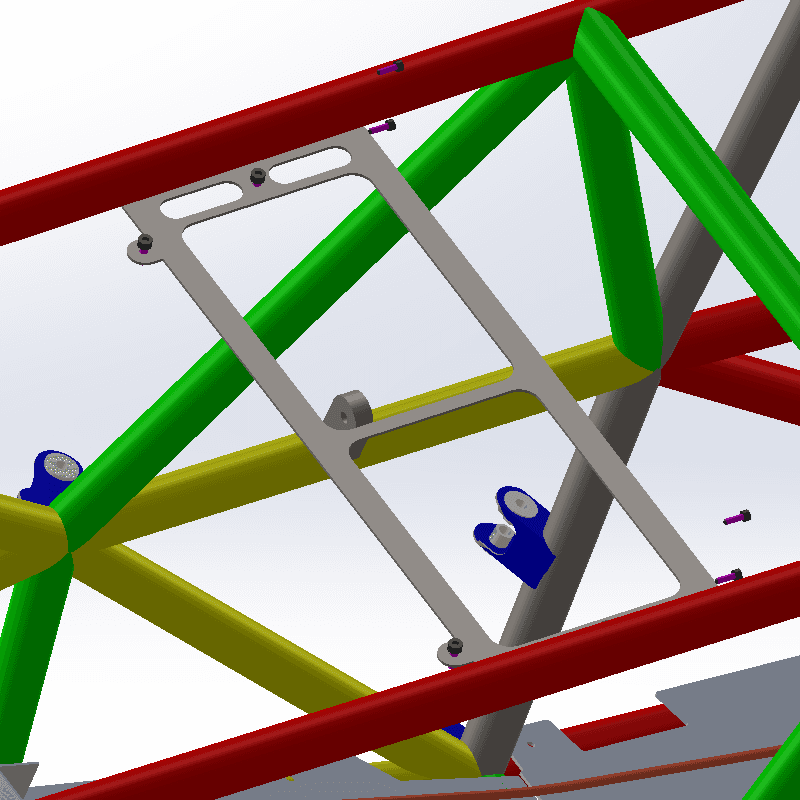

The front-enclosure box at the front of the car is attached to a sheet-metal mount required to be held in positioning when tack-welding
A chassis jig is necessary to meet the mount’s positional tolerance zone
How?

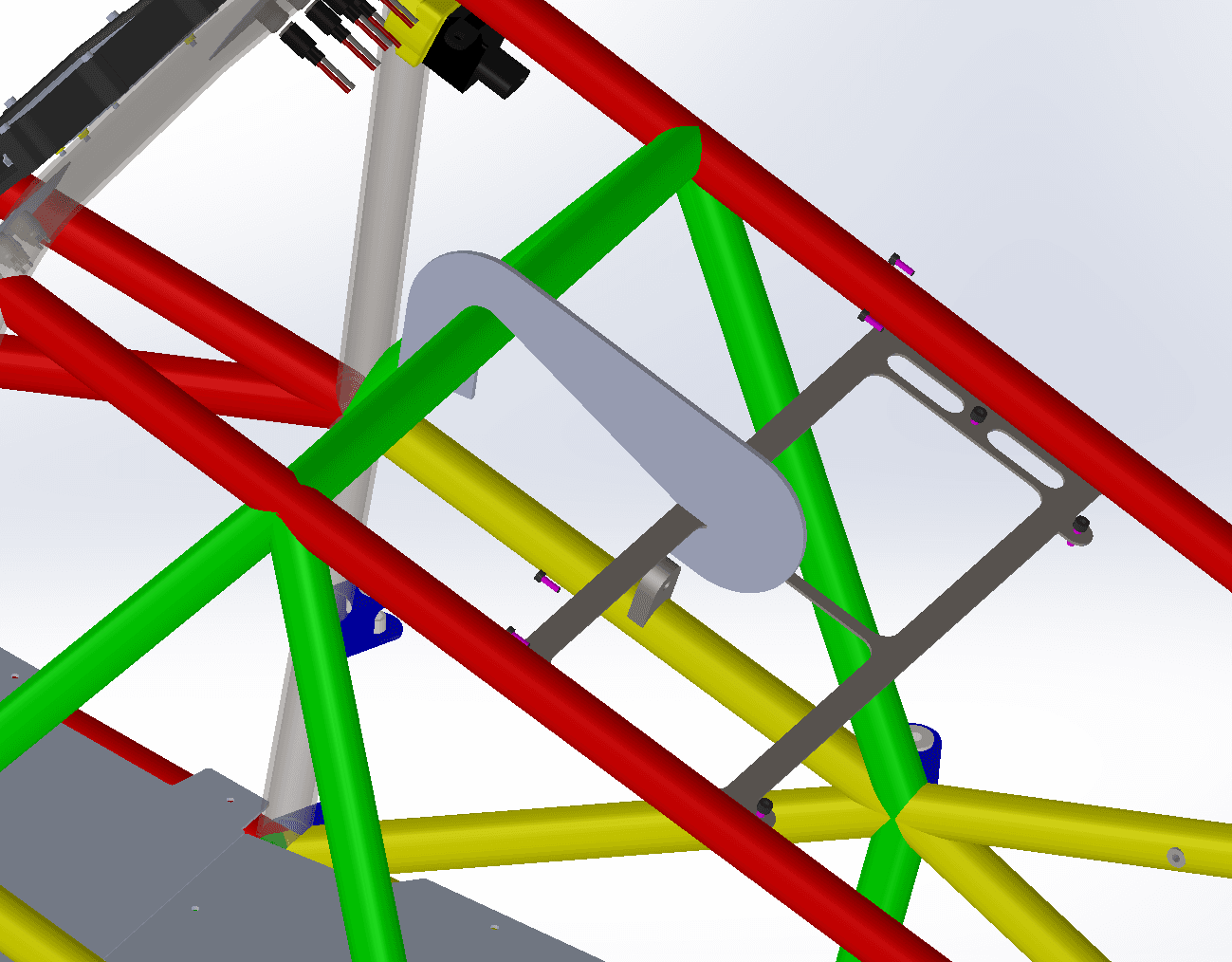

I devised a jig model for the mount by working in a large chassis assembly using SolidWorks
Ensured that the jig is user friendly and can hold it securely at the same time.
Generated a .dxf file for use in AutoCAD to prepare for laser cutting MDF board
Results

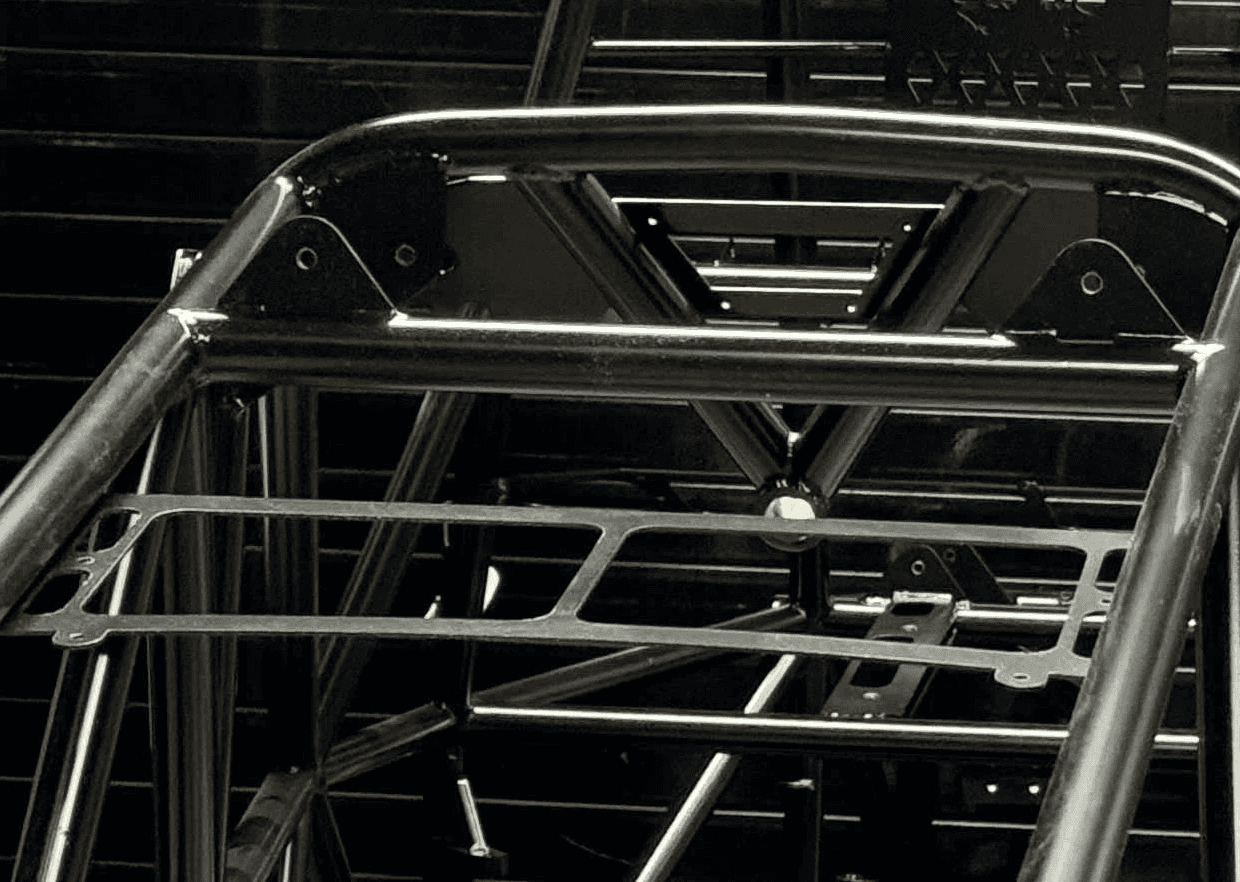

Securely held the mount within ±2mm of true position for tack welding
No additional support was needed for the jig to hold the mount in place, facilitating the welding process
Provided a stable mount for critical vehicle electronics
